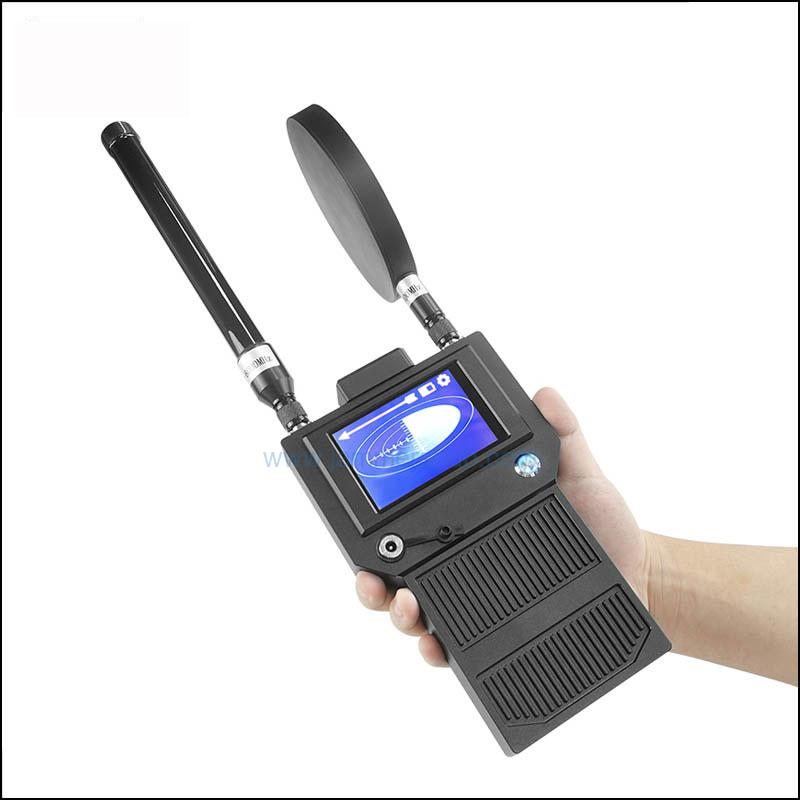

The handheld drone detection system employs innovative low-power digital-analog hybrid receiving technology alongside advanced power management solutions. It is equipped with high-gain, low-gain, and directional ultra-wideband antennas, facilitating accurate audio and vibration alerts for popular civilian drone models, including quadcopters, fixed-wing aircraft, DIY drones, and multirotors, even in challenging electromagnetic scenarios. This device can sense drones from distances of up to 2000 meters while maintaining a low rate of false alerts.
The detection unit is designed to work in conjunction with a stationary anti-drone jammer. Together, they offer comprehensive safeguarding for airspace over designated regions, as well as for monitoring or tracking specific properties, thereby ensuring safe and regulated aerial environments.
Key performance parameters:
| Operating Frequency | 400-1500MHz |
| 2200-2500MHz | |
| 5100-5900MHz | |
| Network Capacity | 11.1V 4Ah |
| Operational Range | 1.5-2km |
| Detection Range | 360?? |
| Coverage Angle | 20?? |
| Charge | Adapter charger 12.6V |
| Dimensions | 220*130*35mm (Excluding antenna) |
| Antenna1 | 2.4G/5.8G dual-band high-gain omni fiberglass antenna |
| Antenna2 | Omni fiberglass antenna 100-6000MHz |
| Antenna3 | Directional antenna 100-6000MHz |
| Detector weight | 750g (Excluding antenna) |
| Total weight | 950g (Including antenna) |
| Target drones: Models from DJI, TONG DAO, and various configurations including quadcopters, fixed-wings, and FPV. | |
Operating Instructions:
1. Connect the antenna (the O-shaped mark denotes the directional antenna).
2. Activate the detector by pressing the power button. Adjust sound and vibration settings located in the upper right corner. When a drone is identified, the device will vibrate, and the screen will depict the drone’s image and frequency band.
3. Touch the drone representation to enter the side interface. Rotate the device 360?? in place to determine the drone – orientation. When the arrows within the two circles align, it indicates the drone – current direction.
4. To power down the detector, press the power button and disconnect the antenna.
Advantages of the Portable drone countermeasure radar WDTX3:
- Detects drones over a range of 1.5KM, including models from DJI, TONG DAO, quadcopters, fixed-winged aircraft, and FPV drones.
- Delivers accurate 360?? detection.
- Exhibits high sensitivity with a low false alarm rate.
- Robust, compact construction.
- Includes three efficient high-power antennas.
- Lightweight design for effortless operation.
Packing list:
1: 1 unit detector
2: 1 unit 2.4G/5.8G omni fiberglass antenna
3: 1 unit 100-6000 MHz omni fiberglass antenna
4: 1 unit directional antenna 100-6000 MHz
5: 1 unit charger
