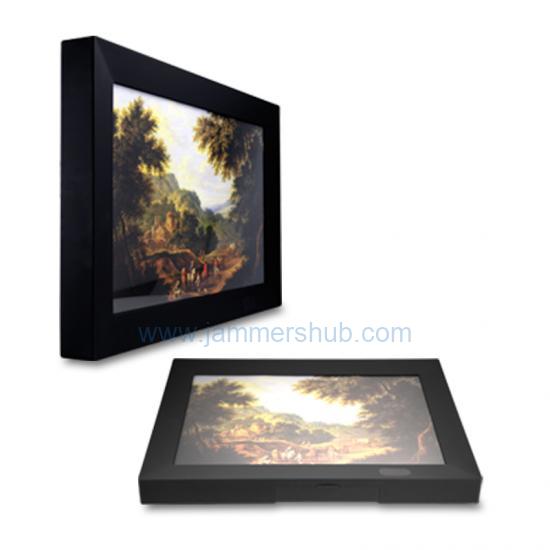

Wall-Mounted Cell Phone and 4G Internet Signal Jammer
The cellular phone and 4G Internet signal blocker is cleverly designed to resemble a piece of artwork, capable of automatically or continuously obstructing data transmissions across 3G, 4G Internet, Wi-Fi, and GSM networks. This apparatus, which mimics a picture frame, surveys the environment for radio waves generated by devices like GSM/3G smartphones, 4G routers, and Wi-Fi networks. Upon detecting RF radiation, it promptly engages its blocking function, providing coverage within a detection range of up to 25 meters. Users have the option to interface the jammer with a laptop or desktop computer to fine-tune the interference intensity and selectively disable specific frequencies. It’s important to note that the blocking range may fluctuate depending on the distance and strength of the cellular service provider’s repeater, with a possible maximum reach of up to 50 meters, contingent upon a mobile signal strength of 60-80%.
Ideal for Secure Meetings
This jammer proves especially beneficial in critical business discussions, negotiations, and pivotal gatherings, effectively averting information breaches through GSM vulnerabilities, Wi-Fi networks, and mobile 3G and 4G Internet connections. Its intelligent operational capability enables it to scan the vicinity for any emissions from wireless devices and activate the interference generator when a radiation source is located. Furthermore, the apparatus can obstruct 4G LTE signals, successfully nullifying modems utilizing LTE wireless connections and halting any data exchanges.
Remote and Computer Control
The jammer is operable via a laptop or personal computer, allowing users to regulate the suppression strength, toggle specific blocking parameters, and oversee the device’s functioning in smart mode. It accommodates a wide spectrum of suppression frequencies, such as GSM 900/1800, 3G 2100, Wi-Fi 2400, and 4G(LTE)2600. A remote control is also provided, enabling users to manage the device – operation from afar, guaranteeing both convenience and effectiveness in sustaining a secure atmosphere.
The basic information of XK-US-6 is as follows:
| Band | Frequency | |
| Suppress signal frequency band | CDMA800 | 824~829MHz |
| GSM1900 | 1850~1910MHz | |
| 3G/CDMA2000 | 1710~1780MHz | |
| 4G/LTE700 | 699~798MHz | |
| 4G/LTE2300 | 2345~2400MHz | |
| WIFI/Bluetooth | 2400~2485MHz |
Features??/strong>
- Aesthetic Design: The unit is crafted to resemble a photo frame, allowing for customization of the displayed image to fit the surrounding context.
- Smart Detection and Blocking: The jamming capability activates intelligently, promoting eco-friendliness.
- PC Management: Equipped with an RS232 communication port for computer control.
- Adjustable Shielding Range: The output power for each frequency band (coverage area) can be fine-tuned through a computer connection.
- Adjustable Detection Range: Provides 30 distinct levels for adjusting the detection range.
- Remote Switch: An infrared remote allows for operation from 0 to 10 meters away.
- Built-in Antenna: The integrated directional antenna enhances shielding accuracy and concealment.
- Operation Indication: LED indicators display the active status and current operational time.
- Band Indication: Individual LEDs for each band provide detection (blue light) and jamming (red light) status.
