The digital backpack jammer system has been developed to efficiently obstruct remote-controlled devices and mobile communications, guaranteeing secure and seamless operation during critical scenarios.
This jammer employs state-of-the-art DDS (Direct Digital Synthesis) technology for peak efficiency. Its jamming range can fluctuate based on various elements, including transmitter frequency, output power, proximity to the receiver, and any environmental obstructions, thereby boosting its efficacy in a variety of situations.

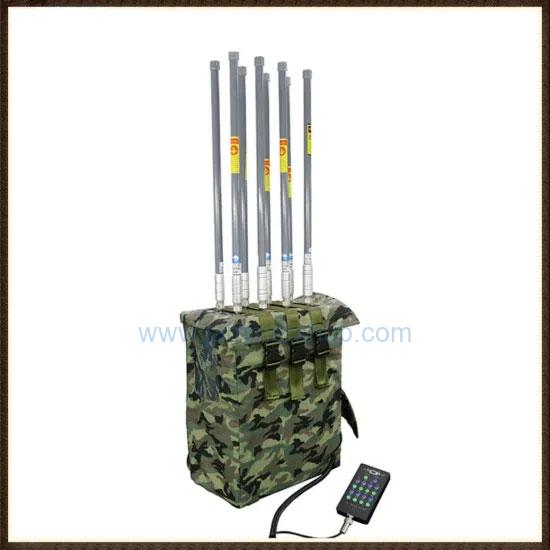

The USWR08 RCIED Manpack Jammer offers a multifunctional backpack solution aimed at protecting important individuals and groups from Radio Controlled Improvised Explosive Devices (RCIEDs) by disrupting the radio frequencies used for triggering explosives in danger zones. Additionally, it impedes information breaches by capturing data transmissions during confidential exchanges, thereby maintaining both safety and confidentiality.
Designed primarily for military use, the USWR08 is a premium option carefully crafted to maximize comfort for soldiers by refining the backpack’s fit. It is constructed to endure extreme weather conditions, including rain, mud, dust, sunlight, impacts, and elevated temperatures.
Technical specifications:
| Working Frequencies | Channel RF Output Power (Watt) | Jamming Target |
| 130-180MHZ | 20W | RC, CB, FM, VHF |
| 420-480MHZ | 20W | RC, UHF |
| 700 – /i>803MHZ | 20W | LTE 4G 700mhz |
| 850 – /i>895MHZ | 20W | CDMA Phone 850mhz |
| 1930-2000MHZ | 20W | Phone 1900mhz |
| 2100 – /i>2200MHZ | 20W | 3G 2100MHZ |
| 2500-2700MHz | 20W | 4G WiMAX Sprint |
| 617-652MHz | 10W | 5G |
Output Power: 150W combined, with 20W allocated for each band
Jamming Range: 20-100 meters
Power Supply: AC110-240V switched to DC-28V
Cooling System: High-efficiency aluminum alloy radiator with integrated intelligent cooling fans
Battery Life: Internal battery plus external battery option
Product Dimensions: 430*320*120mm (excluding antenna)
Product Weight: Approximately 20kg
Remote Control: Wired control for jammer activation/deactivation and power adjustment, also supports software control
Battery: Internal battery offers 1 hour of functionality
Remote Control:
Indicates operational status and alarm signals
Modifies RF power for every band
Activates/deactivates power amplifier for each band
