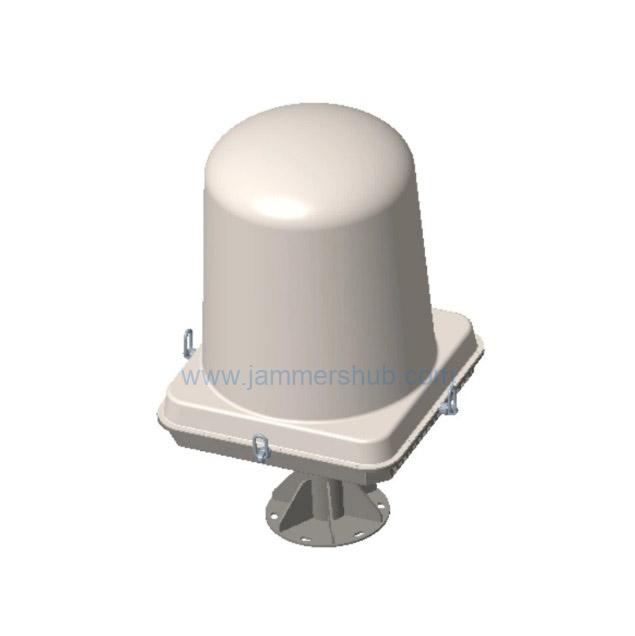

The Fixed Vehicle-mounted UAV detection and jamming device serves as an effective – ecurity captain – in your vicinity. Its extensive frequency coverage spans from 20-6000MHz, enabling it to adeptly identify drone movements within a distance of 3 kilometers. Although it does not provide detailed identification or exact positioning, it is equipped with a jamming feature that successfully disrupts drone signals up to a distance of 2 kilometers, delivering a thorough protective solution.
This device facilitates remote control and monitoring while featuring an advanced heat dissipation system designed to maintain optimal functionality even in high-temperature environments. If an attempt is made to tamper with it, an immediate alert is triggered. With its reliable performance, you need not be concerned about drones causing disturbances.
A robust support bracket has been incorporated at the base of the device to ensure secure installation on various surfaces, including the roof of a vehicle.
The PUS-DF01 UAV detection and jamming system boasts an IP65-rated waterproof casing designed for durability and long-lasting performance. Regardless of inclement weather conditions, such as wind, rain, or intense sunlight, the PUS-DF01 will operate consistently, safeguarding your security around the clock.
Product Specifications
-Passive detection frequency: 20 MHz to 6 GHz
-Detection distance: 3 km
-Detection sensitivity: ??-95dBm (25kHz)
-Omnidirectional coverage: 360?? comprehensive detection
-Multi-target detection: All drones within the area of detection
-Detection height: 0~1000 meters
-Response speed: ?? seconds
-Data refresh rate: ?? seconds
-Detection accuracy: ??9%
-Operational time: 7*24 hours
-Operating temperature range: -20 to +50oC
-Power source: AC 110V-240V
Jammer System Technical Specifications
| Frequency Band Configuration | 20-600 MHz 600-1400 MHz 1400-2200 MHz 2200-3000 MHz 3000-3800 MHz 3800-4600 MHz 4600-5400 MHz 5400-6200 MHz |
|
| Total System Configuration | Number of Channels | Total of 8 frequency channels |
| Power Per Band | 50 watts, total output power across all bands is 400 watts | |
| Power Regulation | Adjustable through software | |
| Interference Range | Capable of affecting a distance of 500 to 2000 meters, depending on local conditions and the distance to the drone’s remote control and the jammer | |
| Antenna | Integrated high-gain omnidirectional antenna | |
Advantages of PUS-DF01
- Each unit offers comprehensive drone signal detection and jamming capabilities.
- Remote monitoring via the integrated network management system allows for real-time status checks, including detection of any offline or malfunction alerts.
- If the jammer is activated without authorization, if the RF connection is severed, the module experiences failure, or if there is a temperature anomaly, the software will promptly generate a fault alert and report the issue.
- Optional UPS power backup ensures the system continues to function normally during main power outages.
- Each module can be individually controlled for activation and deactivation through software.
- Compatible with both high-power omnidirectional and directional antennas.
- Features VSWR protection circuitry to prevent system damage in the event of antenna short circuits or disconnections.
