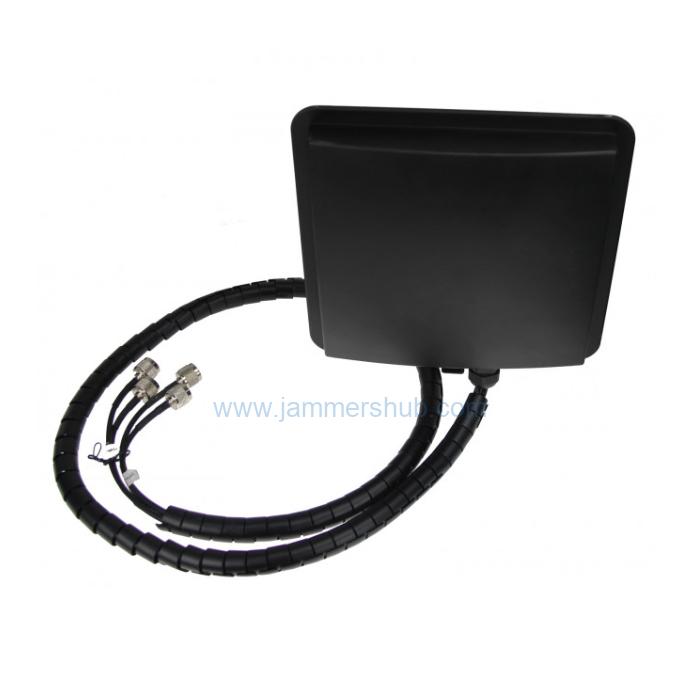

Directional Jamming Electronic UAV Interference Device for Drones

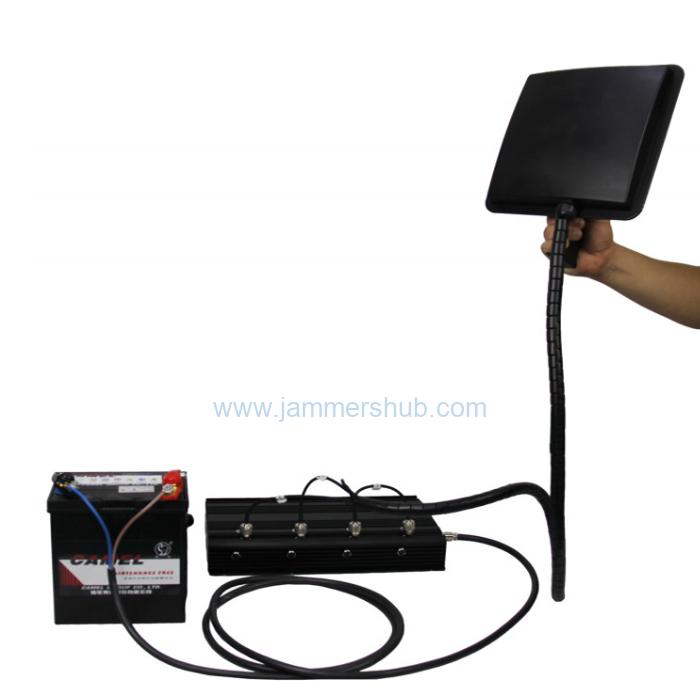

Looking to forcibly land an unauthorized drone? Consider our D-US-06 Electronic UAV Jammer! Simply direct the device at the airborne drone, and the UAV signal jammer will generate radio frequencies that disrupt the control signal required for operating the aircraft, effectively bringing down a quadcopter from DJI or other models.

The effective range extends up to 1 km, adequately safeguarding your privacy from illicit surveillance and potential data breaches within this airspace.
It boasts a maximum output of 82 watts, which is crucial for targeting interference with WiFi 2.4G, Bluetooth, GPS L1, GLONASS L1, and WiFi 5G in both vertical and horizontal orientations.

– The drone jammer is capable of destabilizing these frequency types:

1. 2400 – 2500 MHz: WiFi 2.4G, Bluetooth (Vertical polarization) => 20W
2. 2400 – 2500 MHz: WiFi 2.4G, Bluetooth (Horizontal polarization) => 20W
3. 1570 – 1620 MHz : GPS L1 & GLONASS L1  => 40W
4. 5735 – 5850 MHz: WiFi 5G  => 2.0W
   Total output power: 82W

– Suitable applications: military, civilian, VIP privacy security, private residential airspace

– Additional specifications:

1. Warranty: one-year post-purchase support.
2. Power requirements: 50 to 60Hz, 100 to 240V AC
3. Includes AC adapter: (AC100-240V / DC27V)
4. The UAV jammer unit features four adjustable power settings, enabling manual output power adjustments.
5. Once connected to a power source, the device operates continuously.
6. Cooling mechanism: advanced thermal management system.
7. Safety features: VSWR, overvoltage, and overcurrent protections.
