Discover this effective communication jammer solution!

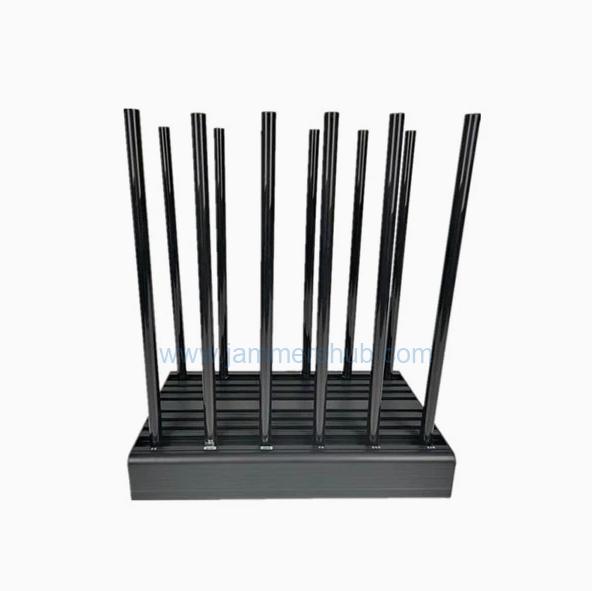

This desktop mobile phone and UHF VHF jammer features 12 antennas, providing coverage for a diverse range of signals including 2G, 3G, 4G, and even 5G. It is capable of shielding traditional GSM, CDMA, and newer LTE signals efficiently. Moreover, its extensive frequency range allows it to suppress multiple signal bands such as VHF, UHF, GPS, and WiFi, ensuring that the signal is entirely disrupted within the target area.
The intelligent design of the antenna spacing minimizes overlapping and reduces interference, thereby ensuring consistent and reliable signal suppression.
The T-US-012-3 utilizes advanced technology to target exclusively the downlink frequencies of mobile systems, avoiding any disruption to normal base station operations. This feature is particularly important in scenarios that require precise signal control, allowing users peace of mind that the jamming device will not interfere with the functioning of nearby electronic devices.
This device is designed to minimize electromagnetic emissions while maintaining effective interference, thereby lessening its impact on the surrounding environment and conserving energy resources.
It adheres to international safety standards for electronic equipment and includes various safety measures such as overvoltage, overcurrent, and overheating protection, ensuring safe operation even during unexpected electrical fluctuations and preventing damage to itself or other devices from power-related issues.
Equipment Specifications
| Bands | Class | Scope |
| 1 | GSM/CDMA | 860-960MHz |
| 2 | PCS | 1930-1990MHz |
| 3 | 3G | 2110-2155MHz |
| 4 | 4G LTE700 | 699-798MHz |
| 5 | 4G LTE 2300 | 2350-2360MHz |
| 6 | 4G LTE 2500 | 2496-2690MHz |
| 7 | 5G 3400 | 3400-3600MHz |
| 8 | 5G 3600 | 3600-3900MHz |
| 9 | GPS | 1575-1610MHz |
| 10 | WiFi 2.4G | 2400-2484MHz |
| 11 | VHF | 135-175MHz |
| 12 | UHF | 400-470MHz |
| Output power | 2W per band (gain: 5.0dBi) | |
| Total power | 100 W | |
| Interference radius | 5-60 meters (dependent on the strength of local signal towers) | |
| Power supply | AC110-240V??10%, 50/60Hz | |
| Dimensions | 350??230??70 mm | |
| Weight | ?? kg | |
| Operating temperature | -20 to +50 ?? | |

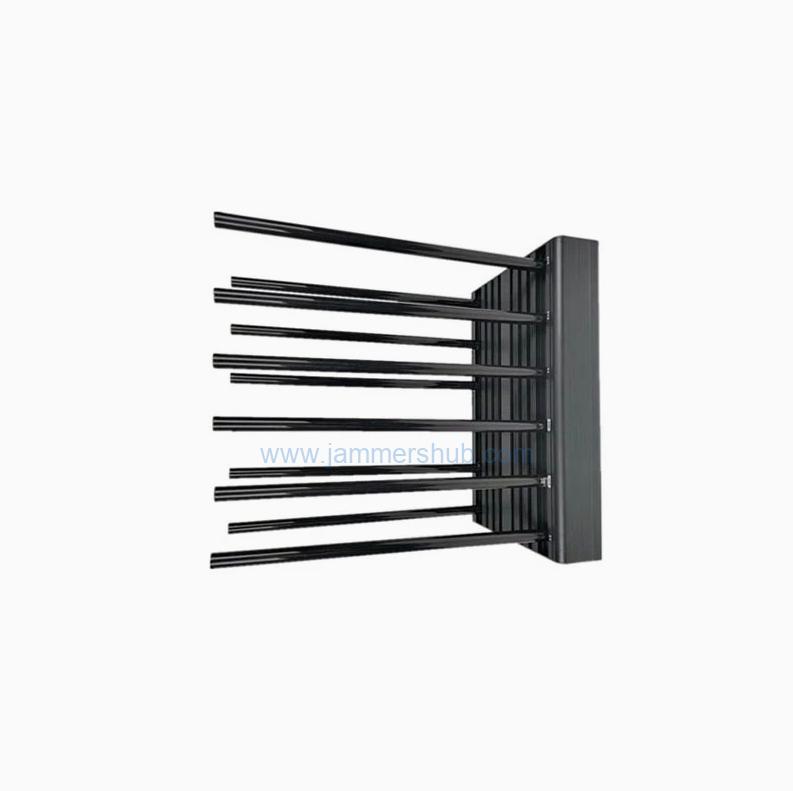

| Installation | Indoor desk or wall mounted | |
Using the 5G jammer T-US-012-3
Operating this signal jammer is straightforward. First, position the unit within the area where signal interference is desired, and install the antennas sequentially following their numbered designations.
Activate the device by flipping the switch, and its robust signal blanket can adjust to various situations (such as secure rooms, examination spaces, etc.), emitting radio interference signals to the targeted locale.
Upon activation, all mobile devices within the operational radius will lose their signal connection. The display on mobile devices will show indicators such as – o Service – or – etwork Unavailable, – preventing standby phones from connecting and blocking incoming calls completely. To external callers, the phone will appear as if it were powered off, making it impossible to reach individuals located in the jamming zone.
Operational Status
During the utilization of the T-US-012-3, all affected mobile devices will be incapable of receiving any signals, encompassing text messages, calls, data transmissions, etc.
Important: The jamming device’s operation will not harm mobile phones or other electronic devices. It merely temporarily interrupts the communication link with the base station within the suppression area. Once the device is turned off, all mobile phones will automatically return to regular service and re-establish connection with the base station, with text messages, missed call alerts, and other notifications resuming normal delivery.
