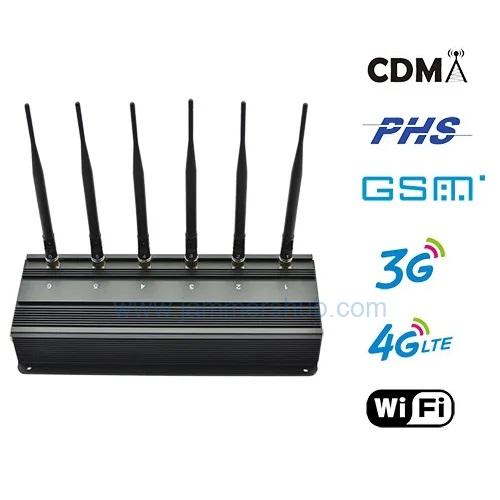

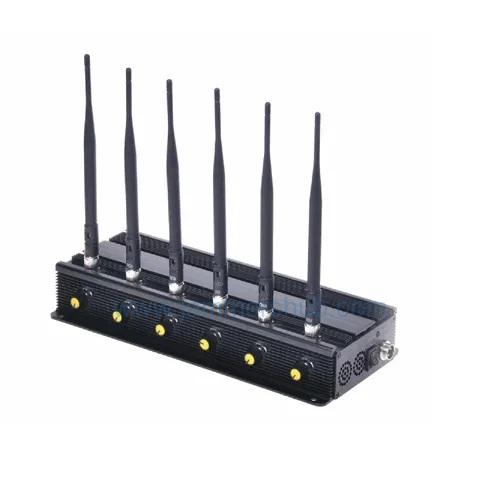

Conference Room Stationary CDMA GSM Signal Jammer

The Stationary WiFi GSM Jammers are multifunctional, high-performance indoor devices designed to disrupt 2.4GHz wireless signals across six frequency bands. Featuring an efficient dual-blade fan, this device effectively dissipates heat, ensuring continuous operation around the clock.

The CDMA GSM jammer product features comprise:

1. Adjustable output power: Customize the signal strength and coverage area with the adjustable output power function.
2. Multi-channel control: Each channel is independently controllable, offering enhanced management of interference signals.
3. Wide coverage: The maximum operational range of the Mobile network Scrambler is up to 30 meters. Coverage can be modified according to the power adjustment switch settings.
4. High-performance processor: A robust processor guarantees smooth and effective performance.
5. Durable metal housing: The jamming device is encased in a sturdy metal housing, safeguarding it from environmental elements and ensuring durability.

Specifications of the T-US-06-6 desktop 3G 4G GSM cellular blocker are as follows:

* Transmit frequency range: CDMA850 (851-894 MHz), PHS 1900 (1920-1990 MHz), 3G WCDMA (2100-2170 MHz), 4G LTE (725-770 MHz), 4G Wimax (2300-2400 MHz), WiFi 2.4 G (2400-2485 MHz).
* Output power: 15 watts.
* Voltage: AC 110/220V, DC 12V.
* Power supply: Mains power supply.
* Signal suppression range: Maximum coverage is 30 meters.
* Operating temperature: -10?? to +50??.
* Working humidity: 5% to 80%.
* Dimensions: 320 x 115 x 55 mm.
* Weight: 3.0 kg.
* Warranty period: 1 year.

The package includes a T-US-06-6 Fixed WiFi GSM jamming device base unit, an AC adapter, and six antennas.

Professional guidance prior to the installation of a CDMA GSM Jammer for conference environments:

For optimal coverage, if you intend to install the T-US-06-6 desktop 4G jamming device in a conference setting or similar indoor location, consider the following steps to assess effectiveness:

It is typically advisable to position the jammer against the walls close to the windows at both ends of the conference area, aiming to install it as high as feasible, with a recommended height of 1-1.8 meters.

If there are limitations in space, the jammer can also be placed on the conference table but avoid direct placement on the ground.

Begin by attaching the antennas to their designated bases, ensuring correct one-to-one marking to maintain interference functionality;

After setting up the antenna, power on the jammer and flip the switch.

Depending on the configuration of the conference room, select an area diagonally across from the jammer’s position to place mobile phones of various carriers for a duration of 1-2 minutes.

If feasible, a spectrum analyzer can be employed to detect whether the jammer’s signal is functioning effectively across different frequency bands.

After allowing the mobile devices to rest for 1-2 minutes, check for any signal indication on the devices.

• If no signal is displayed, this confirms successful blocking of the mobile phone at that location.
• If a signal is present, you may attempt to place a call or utilize data to access the Internet.

• • If normal functionality is absent, this implies the signal bars shown are misleading, indicating the phone cannot make calls or connect to the Internet.
  • If the mobile signal continues to function normally, this indicates the need to reconsider the installation point or verify that the device is operating correctly.

I trust this comprehensive overview will assist you in grasping the features and specifications of the T-US-06-6 Desktop GSM/CDMA/4G Signal Jammer. Should you have any further inquiries or doubts, feel free to reach out!
