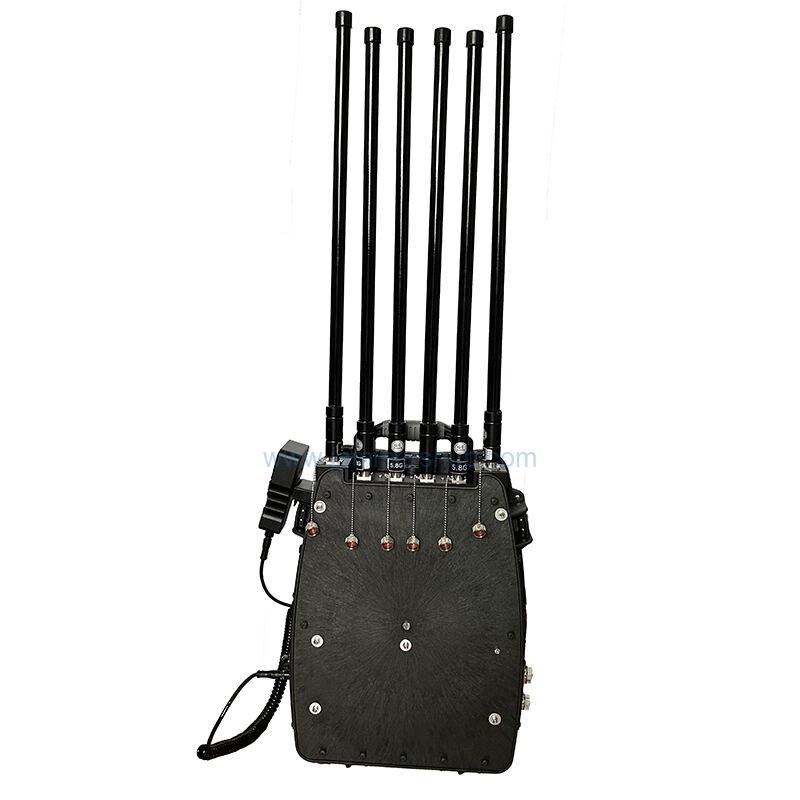

The Backpack-W1 stands out as an exceptional portable drone jammer designed for backpack use. This specialized frequency jammer effectively disables most commercial drones within a range of 1500-2000 meters.
This device interferes with signals including WIFI2.4GHZ/5GHZ, GPSL1, 433MHZ, and 915MHZ in both vertical and horizontal orientations, boasting a total output power of 300 watts (50W per channel). The Backpack-W1 features six high-gain antennas, delivering strong jamming performance.
With its integrated battery, the device operates for up to 60 minutes, ensuring complete protection against drones such as the Phantom 4, Phantom 3 Professional, Advanced, and Standard Series.
The Backpack-W1 UAV drone jammer can be personalized by adding frequencies from the following list, subject to a maximum of six bands. Furthermore, the output power for each band can be tailored to meet your specific requirements. For enhanced efficiency, optional directional antennas are available.
Technical specifications:
Blocked Frequencies: WIFI2.4G, WIFI5.2G, WIFI5.8G, GPSL1, 433MHZ, 915MHZ
Operational Radius: The jammer functions effectively across a distance of 1500-2000 meters.
Power Supply: It operates on an AC110-240V input which is converted to a DC27V output.
Cooling System: Designed with a high-efficiency aluminum alloy heat sink and four cooling fans for superior thermal regulation.
Runtime: The jammer offers continuous operation when connected to an AC power source of DC27V or 60 minutes with an external 24V20Ah battery.
Dimensions: The device measures 510x370x240 mm (excluding antennas).
Weight: The total weight is approximately 25kg when fitted with an OMNI antenna.
Key Features of Backpack-W1:
Enhanced Detection: The anti-drone system utilizes both radar and optical sensors to provide outstanding detection capabilities. These sensors identify drones accurately across substantial distances under any conditions.
Smart Tracking: Upon identifying a drone, the system employs advanced algorithms to track its movement and path diligently, enabling precise location monitoring and effective response procedures.
Safe Mitigation: The system incorporates various neutralization methods, including frequency jamming and directed energy approaches, designed to safely decommission drones without affecting the environment.
User-Friendly Controls: The intuitive interface allows operators to easily oversee and control the system. Real-time insights and notifications equip operators with crucial information for making informed choices.
Scalable Design: This anti-drone system is crafted for scalability, making it adaptable for expansion and customization to meet the diverse needs of various applications.
