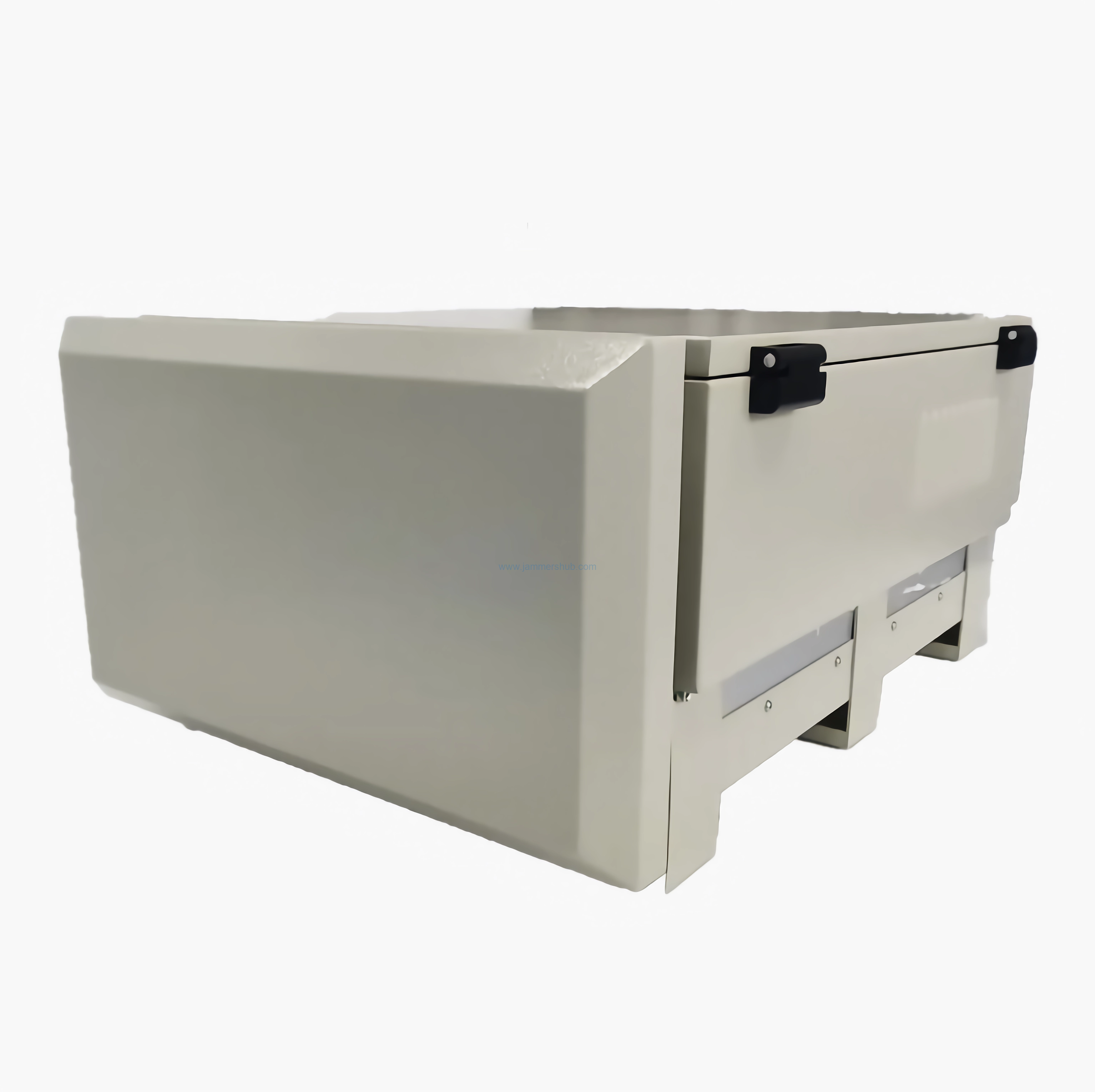

Check it out! This box-style mobile phone and bluetooth jamming device features 6 independent channels (CH1 to CH6) with an aggregate output power of 600W. Each channel has a dedicated control switch, enabling users to selectively activate or deactivate specific channels as required.
This device only disrupts the downlink frequency of the mobile network, ensuring that the base station’s normal functioning remains unaffected. It allows other signal bands within the mobile communication framework to operate without interruption while effectively blocking the designated signal.

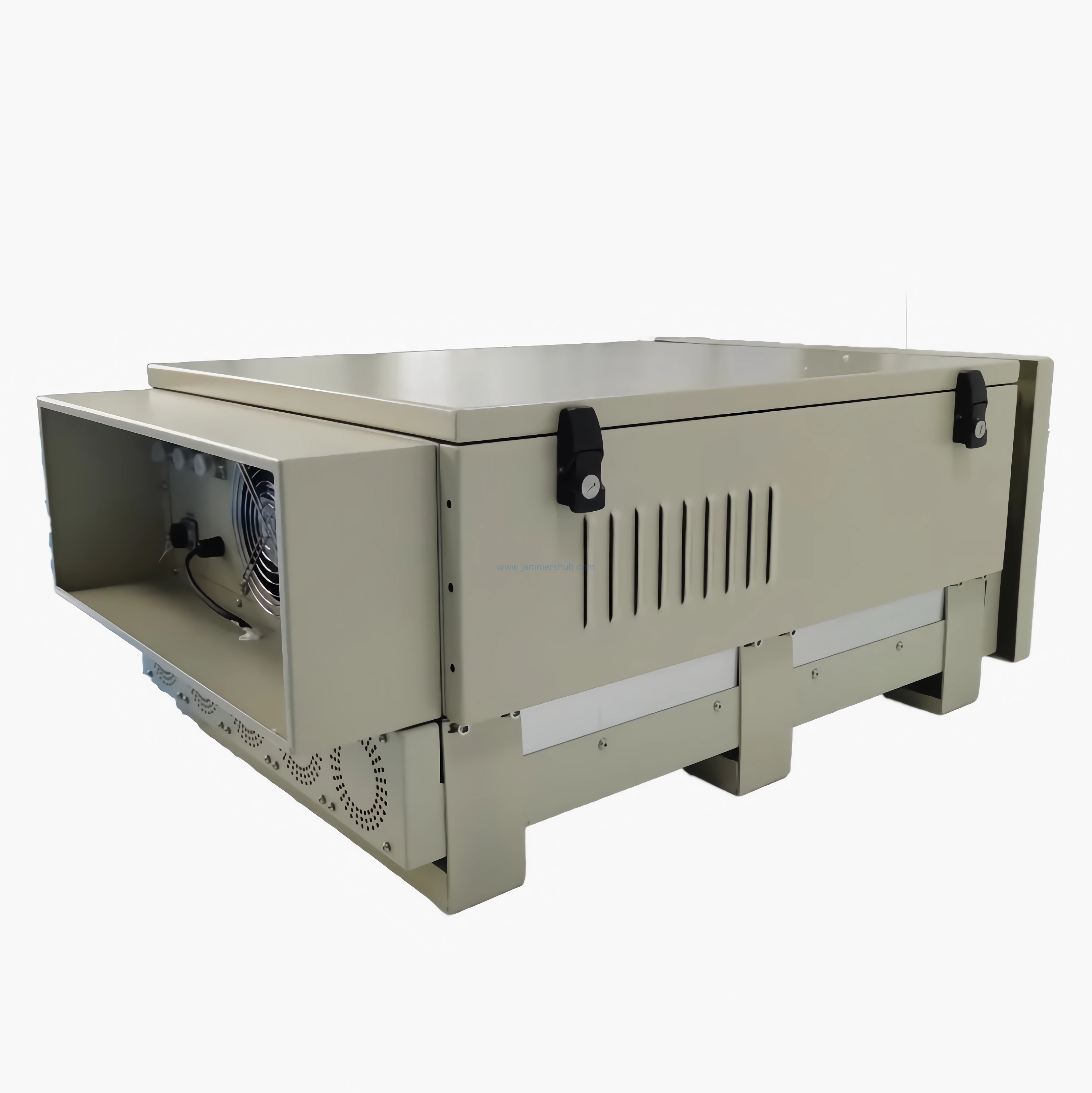

The casing includes a robust locking mechanism to prevent unauthorized access. The edges of the lid are sealed with large rubber gaskets, safeguarding the interior from moisture and maintaining the proper functioning of internal components even in extreme conditions such as high humidity or heavy rainfall.
Several vents and cooling fans work together to keep the internal temperature within an acceptable range during high output levels. Additionally, the unit features overload, overtemperature, and VSWR protection circuits to prevent damage from unusual situations and antenna malfunctions.
High-grade components and a soft-start circuit design foster stability under heavy loads and avert damage due to excessive transient currents.
The powerful cellular and wireless camera jammer incorporates a built-in VCO (voltage-controlled oscillator) as its signal source, ensuring seamless, continuous operation without interruptions (even in elevated temperatures).
The modular structure connects via cables between modules, featuring a clear and organized layout, which facilitates repair and component replacement, as well as future expansion and maintenance efforts.
The control panel features a main power switch alongside individual channel controls. Each channel is equipped with an LED indicator light that illuminates when the device is powered on, allowing operators to easily monitor the operational status of the current channel.
The T-US-B600 remote control feature enables users to activate or deactivate the device from a distance through specialized software, eliminating the need for manual operation across extensive deployments.
This device supports remote control via a local area network (LAN) and comes with a comprehensive software management system. Users can control various device functions remotely through the network, achieving efficient, real-time monitoring along with simplified operational procedures.
Specifications for T-US-B600 Interfering 6 bands signal
| Band | Frequency | Output power/channel |
| GSM 900 | 925-960 MHz | 20 dBm/30KHz(min) |
| PCS | 1930-1990 MHz | 20 dBm/30KHz(min) |
| 3G | 2110-2155 MHz | 23 dBm/30KHz(min) |
| 4G LTE 1 | 790-826 MHz | 22 dBm/30KHz(min) |
| 4G LTE 2 | 2620-2690 MHz | 19 dBm/30KHz(min) |
| WiFi 2.4G | 2400-2484 MHz | 23 dBm/30KHz(min) |
Note:If you don’t require such a high-output camera jamming device for daily utilization and prefer a model with broader coverage for WiFi signals, consider purchasing the affordable P-US-03-3, designed to counter all wireless camera frequency bands and safeguard your personal privacy.
Additional product details
Power requirements: AC110-220V
Shielding distance: 50-600m (varies based on proximity to the local signal tower)
Output capacity: 600W
Power consumption: 1800W
Continuous operation duration: 24 hours
Humidity operating range: 30%-95%
Operating temperature: -20 to +55 degrees Celsius
